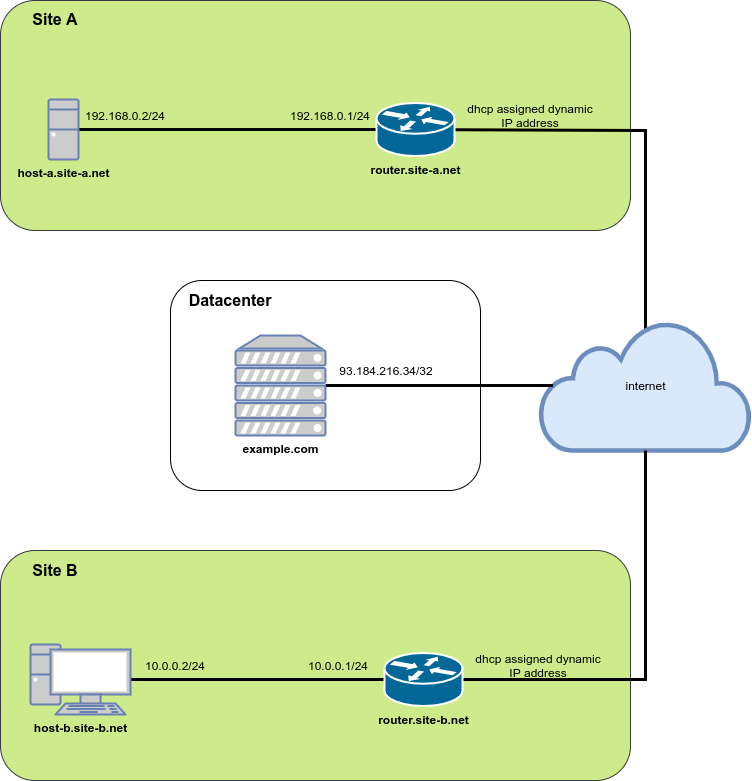

If you need to access a remote system behind a firewall and an unknown dynamic IP address, this might be useful. This configuration enables host-b.site-b.net to connect to host-a.site-a.net via jump host example.com. autossh is used to establish a remote ssh tunnel from host-a.site-a.net to example.com. Through this remote ssh tunnel host-b.site-b.net will be able to connect to host-a.site-a.net.

Create a user for the remote tunnel at the jump host:

useradd -m -s /bin/bash remotesitea
passwd remotesitea

Install autossh and generate a SSH key without a pass phrase.

apt update && apt -y upgrade && apt -y full-upgrade && apt -y autoremove
apt -y install autossh
ssh-keygen -o -a 100 -t ed25519 -f ~/.ssh/autossh-key -C "autossh@host-a.site-a.net"

Copy the autossh pub key to the jump host.

ssh-copy-id -i /root/.ssh/autossh-key remotesitea@example.com

Create a unit file.

vim /etc/systemd/system/sshtunnel.service

[Unit]
Description=Remote SSH tunnel to 'example.com'
After=network-online.target ssh.service

[Service]
User=root
Environment="AUTOSSH_PORT=0"
Environment="AUTOSSH_GATETIME=0"
RestartSec=30
Restart=always

ExecStart=/usr/bin/autossh -NT -o "ExitOnForwardFailure=yes" -R 16000:127.0.0.1:22 -p 22 -l remotesitea example.com -i /root/.ssh/autossh-key
ExecStop=/usr/bin/killall -s KILL autossh
TimeoutStopSec=10

[Install]
WantedBy=multi-user.target

Enable and start the autossh remote tunnel as a service

systemctl enable sshtunnel.service
systemctl start sshtunnel.service

Now you can connect from host-b.site-b.net to host-a.site-a.net via the jump host:

# ssh to example.com and log in
ssh <youruser>@example.com
# when you are logged in on example.com, ssh through the remote tunnel to host-a.site-a.net
ssh -p 16000 <A-User-Account-On-host-a.site-a.net>@localhost
